- All steps have been tested on 64-bit Ubuntu 16.04.
p2im - gitclone
git clone [<https://github.com/RiS3-Lab/p2im.git>](<https://github.com/RiS3-Lab/p2im.git>)
git submodule update --init
git submodule update --remote
GNU Arm Embedded Toolcahin
- x86 → ARM 환경에서 실행되는 바이너리
wget <https://developer.arm.com/-/media/Files/downloads/gnu-rm/10.3-2021.10/gcc-arm-none-eabi-10.3-2021.10-x86_64-linux.tar.bz2?rev=78196d3461ba4c9089a67b5f33edf82a&hash=D484B37FF37D6FC3597EBE2877FB666A41D5253B>
tar xjf *.tar.bz2
PATH=$PATH:/home/parallels/tmp/gcc-arm-none-eabi-10.3-2021.10/bin
echo $PATH
AFL
babyhack@ubuntu:~/tmp/p2im/afl$ make
[*] Checking for the ability to compile x86 code...
[+] Everything seems to be working, ready to compile.
cc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" afl-gcc.c -o afl-gcc -ldl
set -e; for i in afl-g++ afl-clang afl-clang++; do ln -sf afl-gcc $i; done
cc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" afl-fuzz.c -o afl-fuzz -ldl
cc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" afl-showmap.c -o afl-showmap -ldl
cc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" afl-tmin.c -o afl-tmin -ldl
cc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" afl-gotcpu.c -o afl-gotcpu -ldl
cc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" afl-analyze.c -o afl-analyze -ldl
cc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" afl-as.c -o afl-as -ldl
ln -sf afl-as as
[*] Testing the CC wrapper and instrumentation output...
unset AFL_USE_ASAN AFL_USE_MSAN; AFL_QUIET=1 AFL_INST_RATIO=100 AFL_PATH=. ./afl-gcc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" test-instr.c -o test-instr -ldl
echo 0 | ./afl-showmap -m none -q -o .test-instr0 -- ./test-instr
echo 1 | ./afl-showmap -m none -q -o .test-instr1 -- ./test-instr
[+] All right, the instrumentation seems to be working!
[+] All done! Be sure to review README - it\\'s pretty short and useful.
babyhack@ubuntu:~/tmp/p2im$ make -C afl/
make: Entering directory '/home/babyhack/tmp/p2im/afl'
[*] Checking for the ability to compile x86 code...
[+] Everything seems to be working, ready to compile.
[*] Testing the CC wrapper and instrumentation output...
unset AFL_USE_ASAN AFL_USE_MSAN; AFL_QUIET=1 AFL_INST_RATIO=100 AFL_PATH=. ./afl-gcc -O0 -funroll-loops -Wall -D_FORTIFY_SOURCE=2 -g -Wno-pointer-sign -DAFL_PATH=\\"/usr/local/lib/afl\\" -DDOC_PATH=\\"/usr/local/share/doc/afl\\" -DBIN_PATH=\\"/usr/local/bin\\" -DVERSION=\\"2.06b\\" test-instr.c -o test-instr -ldl
echo 0 | ./afl-showmap -m none -q -o .test-instr0 -- ./test-instr
echo 1 | ./afl-showmap -m none -q -o .test-instr1 -- ./test-instr
[+] All right, the instrumentation seems to be working!
[+] All done! Be sure to review README - it's pretty short and useful.
NOTE: If you can read this, your terminal probably uses white background.
This will make the UI hard to read. See docs/status_screen.txt for advice.
make: Leaving directory '/home/babyhack/tmp/p2im/afl'
Docker Install
sudo apt install docker.io
sudo usermod -aG docker $USER
cd ~tmp/p2im/qemu
WORK_FOLDER_PATH=`pwd`/src ./build_scripts/build-qemu.sh --deb64 --no-strip
babyhack@ubuntu:~/tmp/p2im/qemu$ WORK_FOLDER_PATH=`pwd`/src ./build_scripts/build-qemu.sh --deb64 --no-strip
Using "/home/babyhack/tmp/p2im/qemu/src" as Work folder...
Helper script: "/home/babyhack/tmp/p2im/qemu/src/scripts/build-helper.sh".
Script "./build_scripts/build-qemu.sh" started at Wed Jan 18 06:45:50 PST 2023.
Running on Ubuntu 64-bits.
Checking host curl...
curl 7.47.0 (x86_64-pc-linux-gnu) libcurl/7.47.0 GnuTLS/3.4.10 zlib/1.2.8 libidn/1.32 librtmp/2.3
Checking host git...
git version 2.7.4
Checking Docker...
Docker version 18.09.7, build 2d0083d
Checking host automake...
Firmware preparation
- p2im-real_firmware
git clone <https://github.com/RiS3-Lab/p2im-real_firmware.git>
seed 파일 복사
WORKING_DIR=~/tmp/p2im/fuzzing/Drone/5/
mkdir -p ${WORKING_DIR}
cd ${WORKING_DIR}
cp -r ~/tmp/p2im/fuzzing/templates/seeds/ ${WORKING_DIR}/inputs
config 수정
# P2IM - fuzzing configuration template
# ------------------------------------------------------
# Copyright (C) 2018-2020 RiS3 Lab
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at:
# <http://www.apache.org/licenses/LICENSE-2.0>
# Please change configurations that are enclosed in "< >".
# Please use absolute path in this file.
[DEFAULT] # used only by fuzz.py
# is the path of root directory of P2IM git repo
base = /home/babyhack/tmp/p2im ## 수정해야함. fuzzer 프로그램 경로
# can be arbitrary string you want. It doesn't need to be the firmware binary name
program = Drone ### 타켓 프로그램명 및 디렉토리 이름
# Each firmware may be fuzzed multiple times. So it's better to number each fuzzer run
run = 5
# working directory of fuzzing
working_dir = %(base)s/fuzzing/%(program)s/%(run)s
[afl] # used only by fuzz.py
bin = %(base)s/afl/afl-fuzz
timeout = 150+
input = %(working_dir)s/inputs
output = %(working_dir)s/outputs
[cov] # used only by cov.py
#count_hang = False
count_hang = True
bbl_cov_read_sz = 20000000
# 1 second
timeout = 1
[qemu]
bin = %(base)s/qemu/precompiled_bin/qemu-system-gnuarmeclipse
log = unimp,guest_errors,int
#log = unimp,guest_errors,exec,int -D qemu.log
[program]
# the board/mcu supported by QEMU is listed as comments below
#board =
#mcu =
#board = STM32F429I-Discovery
#mcu = STM32F429ZI
board = NUCLEO-F103RB # 타켓 board와 mcu 선택 (주석 제거)
mcu = STM32F103RB #
#board = Arduino-Due
#mcu = SAM3X8E
#board = FRDM-K64F
#mcu = MK64FN1M0VLL12
# has to be name of firmware elf file
img = %(working_dir)s/Drone # 이미지 경로 대소문자 구분하니 조심
[model]
retry_num = 3
peri_addr_range = 512
# arm-none-eabi-objdump is part of GNU Arm Embedded Toolchain you downloaded while setting up P2IM environment.
# For example, on my machine is /home/bo/gcc-arm-none-eabi-6-2017-q2-update/bin/arm-none-eabi-objdump
### objdump 경로 풀 경로 입력 해야함.
objdump = /home/babyhack/tmp/gcc-arm-none-eabi-10.3-2021.10/bin/arm-none-eabi-objdump
# config below are only used by fuzz.py
bin = %(base)s/model_instantiation/me.py
log_file = %(working_dir)s/me.log
fuzzing 환경 설정 폴더
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5$ cp /home/babyhack/tmp/p2im/externals/p2im-real_firmware/Drone ./
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5$ ls
Drone fuzz.cfg inputs
Fuzzer 실행
#python3 ~/tmp/p2im/model_instantiation/fuzz.py -c fuzz.cfg
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5$ python3 ~/tmp/p2im/model_instantiation/fuzz.py -c fuzz.cfg
Change working dir to: /home/babyhack/tmp/p2im/fuzzing/Drone/5
CWD: /home/babyhack/tmp/p2im/fuzzing/Drone/5
try our best to extract model w/o input
cmd_me0: /home/babyhack/tmp/p2im/model_instantiation/me.py -c /home/babyhack/tmp/p2im/fuzzing/Drone/5/fuzz.cfg --run-num 0 --print-to-file
Change working dir to: 0/
CWD: /home/babyhack/tmp/p2im/fuzzing/Drone/5/0
Redirect stdout to file named stdout
테스트 환경
0.random.8
run f/w w/ seed input to check if there is aup
cmd_qemu: /home/babyhack/tmp/p2im/qemu/precompiled_bin/qemu-system-gnuarmeclipse -nographic -aflFile /home/bats/random -board NUCLEO-F103RB -mcu STM32F103RB -image /home/babyhack/tmp/p2im/fuzzing/Drone/5/Drone -pm-stagp2im/fuzzing/Drone/5/0.random.7/peripheral_model.json -me-bin /home/babyhack/tmp/p2im/model_instantiation/me.m/fuzzing/Drone/5/fuzz.cfg
There is aup, run ME
cmd_me: /home/babyhack/tmp/p2im/model_instantiation/me.py -c /home/babyhack/tmp/p2im/fuzzing/Drone/5/fuzz.cfge --run-from-forkserver --afl-file /home/babyhack/tmp/p2im/fuzzing/Drone/5/inputs/random --model-if /home/babdom.7/peripheral_model.json
Change working dir to: 0.random.8/
CWD: /home/babyhack/tmp/p2im/fuzzing/Drone/5/0.random.8
Redirect stdout to file named stdout
Traceback (most recent call last):
File "/home/babyhack/tmp/p2im/model_instantiation/me.py", line 1166, in <module>
srr_info = stage1_5()
File "/home/babyhack/tmp/p2im/model_instantiation/me.py", line 490, in stage1_5
objdump = subprocess.check_output([cfg.objdump, "-dC", cfg.img])
File "/usr/lib/python3.5/subprocess.py", line 626, in check_output
**kwargs).stdout
File "/usr/lib/python3.5/subprocess.py", line 693, in run
with Popen(*popenargs, **kwargs) as process:
File "/usr/lib/python3.5/subprocess.py", line 947, in __init__
restore_signals, start_new_session)
File "/usr/lib/python3.5/subprocess.py", line 1551, in _execute_child
raise child_exception_type(errno_num, err_msg)
OSError: [Errno 8] Exec format error
0.random.9
run f/w w/ seed input to check if there is aup
cmd_qemu: /home/babyhack/tmp/p2im/qemu/precompiled_bin/qemu-system-gnuarmeclipse -nographic -aflFile /home/bats/random -board NUCLEO-F103RB -mcu STM32F103RB -image /home/babyhack/tmp/p2im/fuzzing/Drone/5/Drone -pm-stagp2im/fuzzing/Drone/5/0.random.8/peripheral_model.json -me-bin /home/babyhack/tmp/p2im/model_instantiation/me.m/fuzzing/Drone/5/fuzz.cfg
.............................
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5$ /home/babyhack/tmp/p2im/qemu/precompiled_bin/qemu-system-gnuarme
(process:17789): GLib-WARNING **: /Host/Work/qemu/glib-2.51.0/glib/gmem.c:483: custom memory allocation vtabl
[0, 0] 1-th(total 1-th) unassigned mem_r *0x0
[0, 0] 2-th(total 2-th) unassigned mem_r *0x4
QEMU 2.3.50 monitor - type 'help' for more information
(qemu) QEMU 2.3.50 monitor - type 'help' for more information
(qemu) [8004f10, 8004f4e] 1-th(total 3-th) pm_r *0x40021000 gets 0x0, remains CR+SR
[8004f10, 8004f4e] 1-th(total 1-th) pm_w *0x40021000 = 0x1, remains CR+SR
[8004f10, 8004f4e] 2-th(total 4-th) pm_r *0x40021004 gets 0x0, remains CR
[8004f10, 8004f4e] 2-th(total 2-th) pm_w *0x40021004 = 0x0, remains CR
[8004f10, 8004f4e] 3-th(total 5-th) pm_r *0x40021000 gets 0x1, remains CR+SR
[8004f10, 8004f4e] 3-th(total 3-th) pm_w *0x40021000 = 0x1, remains CR+SR
[8004f10, 8004f4e] 4-th(total 6-th) pm_r *0x40021000 gets 0x1, remains CR+SR
[8004f10, 8004f4e] 4-th(total 4-th) pm_w *0x40021000 = 0x1, remains CR+SR
[8004f10, 8004f4e] 5-th(total 7-th) pm_r *0x40021004 gets 0x0, remains CR
[8004f10, 8004f4e] 5-th(total 5-th) pm_w *0x40021004 = 0x0, remains CR
[8004f10, 8004f4e] 6-th(total 6-th) pm_w *0x40021008 = 0x9f0000, remains DR
start up afl forkserver!
[8001128, 800113a] 6-th(total 8-th) pm_r *0x40022000 gets 0x0, remains CR
[8001128, 800113a] 7-th(total 7-th) pm_w *0x40022000 = 0x10, remains CR
[8004ccc, 8004ce8] 7-th(total 9-th) pm_r *0x40021018 gets 0x0, remains CR
[8004ccc, 8004ce8] 8-th(total 8-th) pm_w *0x40021018 = 0x1, remains CR
[8004ccc, 8004ce8] 8-th(total 10-th) pm_r *0x40021018 gets 0x1, remains CR
[8001cba, 8001cc4] 9-th(total 11-th) pm_r *0x40021004 gets 0x0, remains CR
[8001cd4, 8001cf0] 10-th(total 12-th) pm_r *0x40021000 gets 0x1, remains CR+SR
[8001cf6, 8001d10] 11-th(total 13-th) pm_r *0x40021000 gets 0x1, remains CR+SR
[8001cf6, 8001d10] 9-th(total 9-th) pm_w *0x40021000 = 0x81, remains CR+SR
...........................

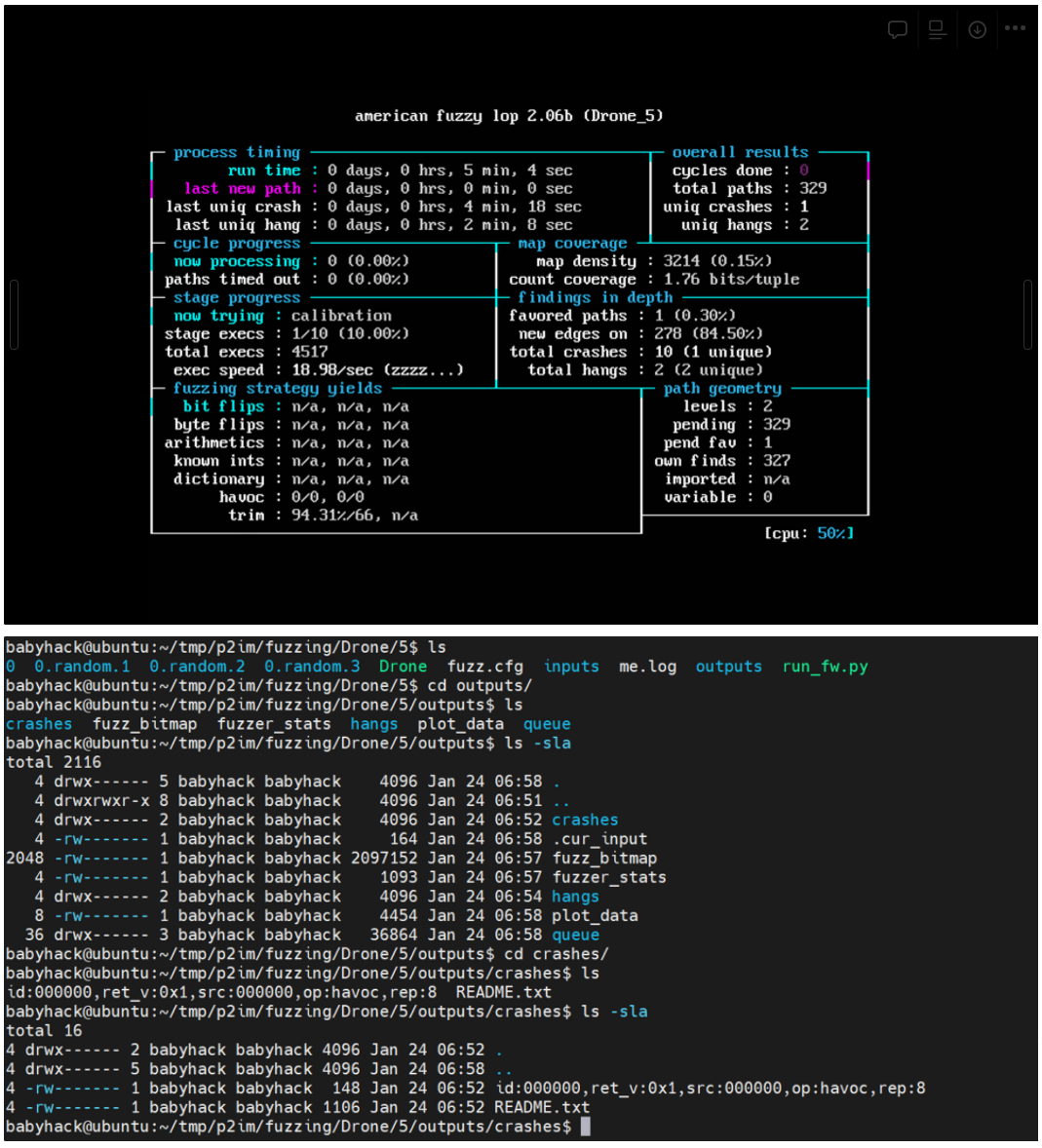

환경이 맞으면, AFL Fuzzing 시작
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5$ ls
0 0.random.1 0.random.2 0.random.3 Drone fuzz.cfg inputs me.log outputs run_fw.py
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5$ cd outputs/
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5/outputs$ ls
crashes fuzz_bitmap fuzzer_stats hangs plot_data queue
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5/outputs$ ls -sla
total 2116
4 drwx------ 5 babyhack babyhack 4096 Jan 24 06:58 .
4 drwxrwxr-x 8 babyhack babyhack 4096 Jan 24 06:51 ..
4 drwx------ 2 babyhack babyhack 4096 Jan 24 06:52 crashes
4 -rw------- 1 babyhack babyhack 164 Jan 24 06:58 .cur_input
2048 -rw------- 1 babyhack babyhack 2097152 Jan 24 06:57 fuzz_bitmap
4 -rw------- 1 babyhack babyhack 1093 Jan 24 06:57 fuzzer_stats
4 drwx------ 2 babyhack babyhack 4096 Jan 24 06:54 hangs
8 -rw------- 1 babyhack babyhack 4454 Jan 24 06:58 plot_data
36 drwx------ 3 babyhack babyhack 36864 Jan 24 06:58 queue
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5/outputs$ cd crashes/
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5/outputs/crashes$ ls
id:000000,ret_v:0x1,src:000000,op:havoc,rep:8 README.txt
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5/outputs/crashes$ ls -sla
total 16
4 drwx------ 2 babyhack babyhack 4096 Jan 24 06:52 .
4 drwx------ 5 babyhack babyhack 4096 Jan 24 06:58 ..
4 -rw------- 1 babyhack babyhack 148 Jan 24 06:52 id:000000,ret_v:0x1,src:000000,op:havoc,rep:8
4 -rw------- 1 babyhack babyhack 1106 Jan 24 06:52 README.txt
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5/outputs/crashes$ cat README.txt
Command line used to find this crash:
/home/babyhack/tmp/p2im/afl/afl-fuzz -i /home/babyhack/tmp/p2im/fuzzing/Drone/5/inputs -o /home/babyhack/tmp/p2im/fuzzing/Drone/5/outputs -t 150+ -QQ -a /home/babyhack/tmp/p2im/model_instantiation/me.py -b /home/babyhack/tmp/p2im/fuzzing/Drone/5/fuzz.cfg -c /home/babyhack/tmp/p2im/fuzzing/Drone/5/0.random.3/peripheral_model.json -T Drone_5 -d /home/babyhack/tmp/p2im/qemu/precompiled_bin/qemu-system-gnuarmeclipse -nographic -board NUCLEO-F103RB -mcu STM32F103RB -image /home/babyhack/tmp/p2im/fuzzing/Drone/5/Drone -pm-stage 3 -aflFile @@
If you can't reproduce a bug outside of afl-fuzz, be sure to set the same
memory limit. The limit used for this fuzzing session was 2.00 GB.
Need a tool to minimize test cases before investigating the crashes or sending
them to a vendor? Check out the afl-tmin that comes with the fuzzer!
Found any cool bugs in open-source tools using afl-fuzz? If yes, please drop
me a mail at <lcamtuf@coredump.cx> once the issues are fixed - I'd love to
add your finds to the gallery at:
<http://lcamtuf.coredump.cx/afl/>
Thanks :-)
babyhack@ubuntu:~/tmp/p2im/fuzzing/Drone/5/outputs/crashes$
